| Features | Specification |
|---|---|
| Product Name | PVC Conveyor Belt for ceramic/marble polishing |
| No. | PVC0904403 |
| Top Cover | Flex am |
| Fabric | EM |
| Tension/number of plies | 60/4 |
| Bottom Thickness/Profile | 00 |
| Top Cover Thickness/Profile | H8 |
| Color | Petrol Blue |
| Standard width mm | 1000 |
| Max Avilable with mm | 2100 |
| Belt Thickness mm | 9.0 |
| Weight kg/m2 | 10.5 |
| F/E at 1% | 64 |

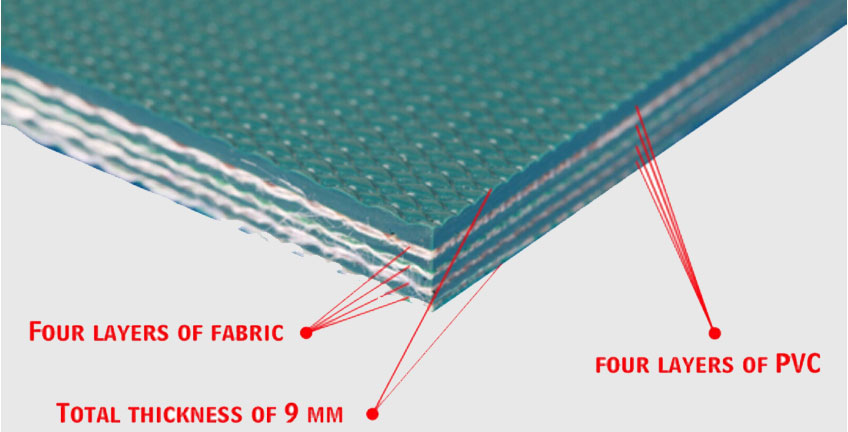

| Number of Plies | 4 |
| Material | PVC |
| Top Hardness Shore | 75A |
| Top Cover Thickness mm | 2.2 |
| Laterally | Stable |
| Flexing mm(20o)c | 250 |
| Back Flexing mm(20oc) | 350 |
| Prolonged Minimum(oc) | -15 |
| Prolonged Maximum(oc) | 80 |
| Short Minimum oc | -15 |
| Short Maximum oc | 100 |
| Application | Polishing Machines for Ceramics, Marble, Tiles, Stones |
